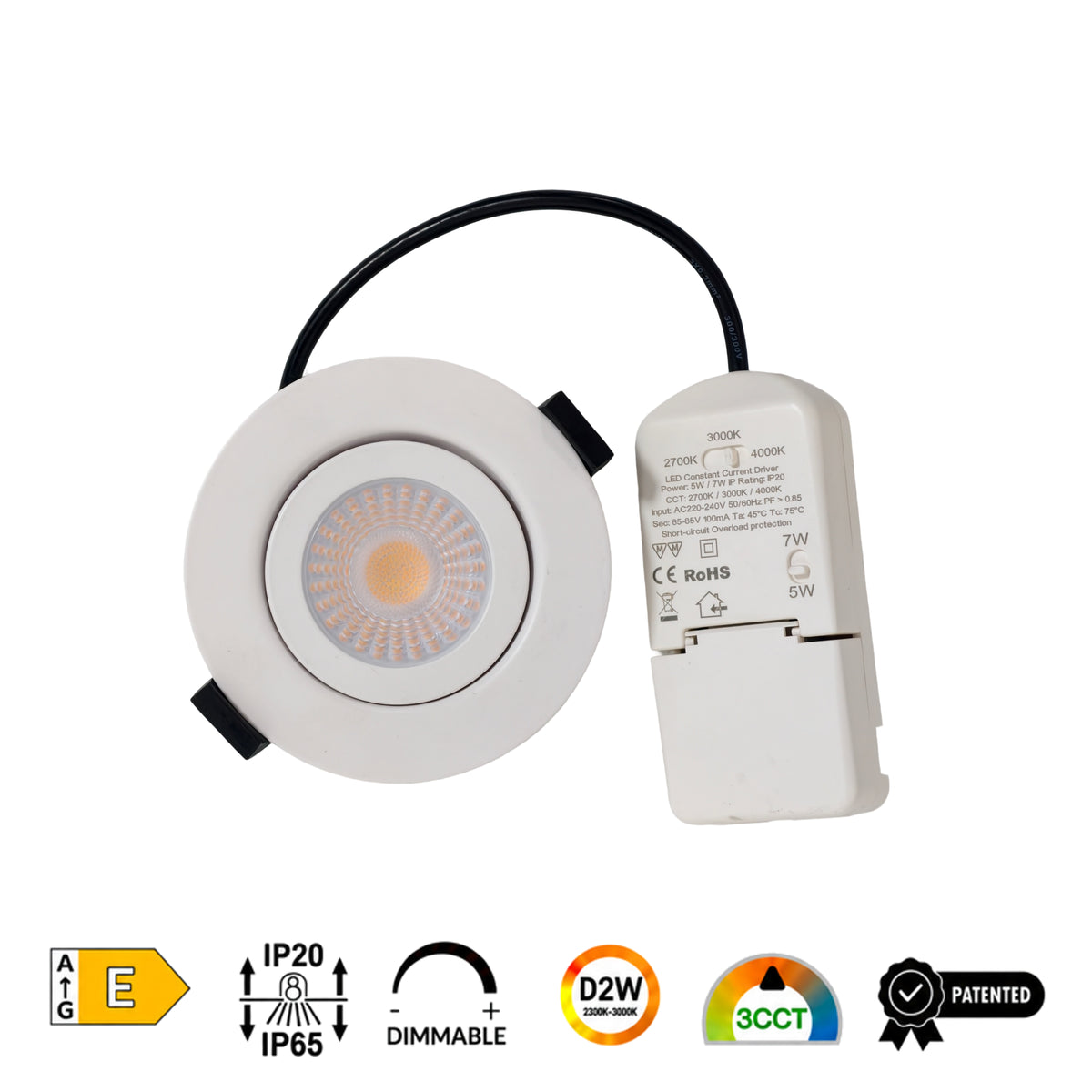

• Orbit 360 SMD white adjustable LED downlight, front view showing the circular lens, black mounting clips and external driver.

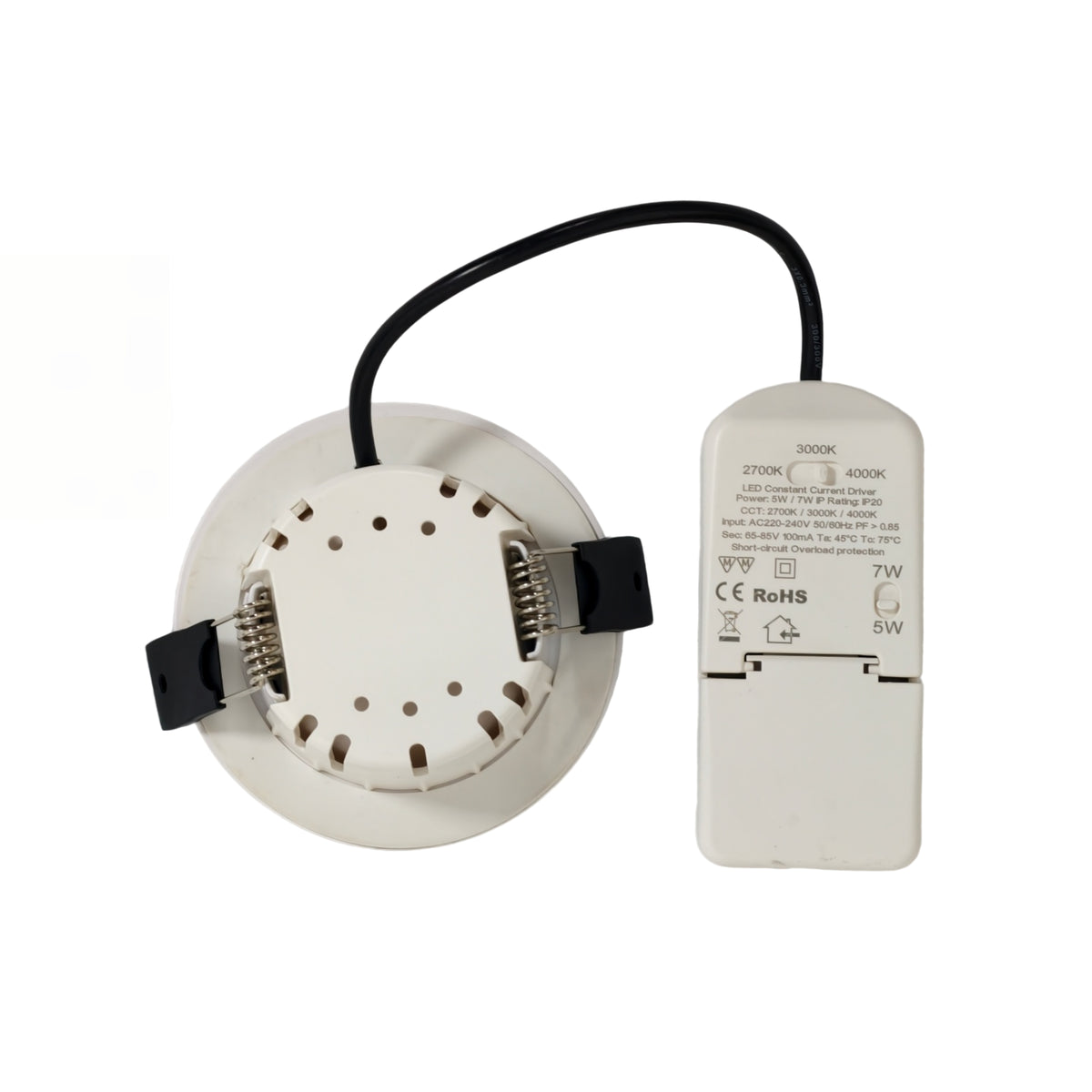

  • Orbit 360 SMD LED downlight, rear view showing the ventilated white housing, spring clips with black caps and external driver.

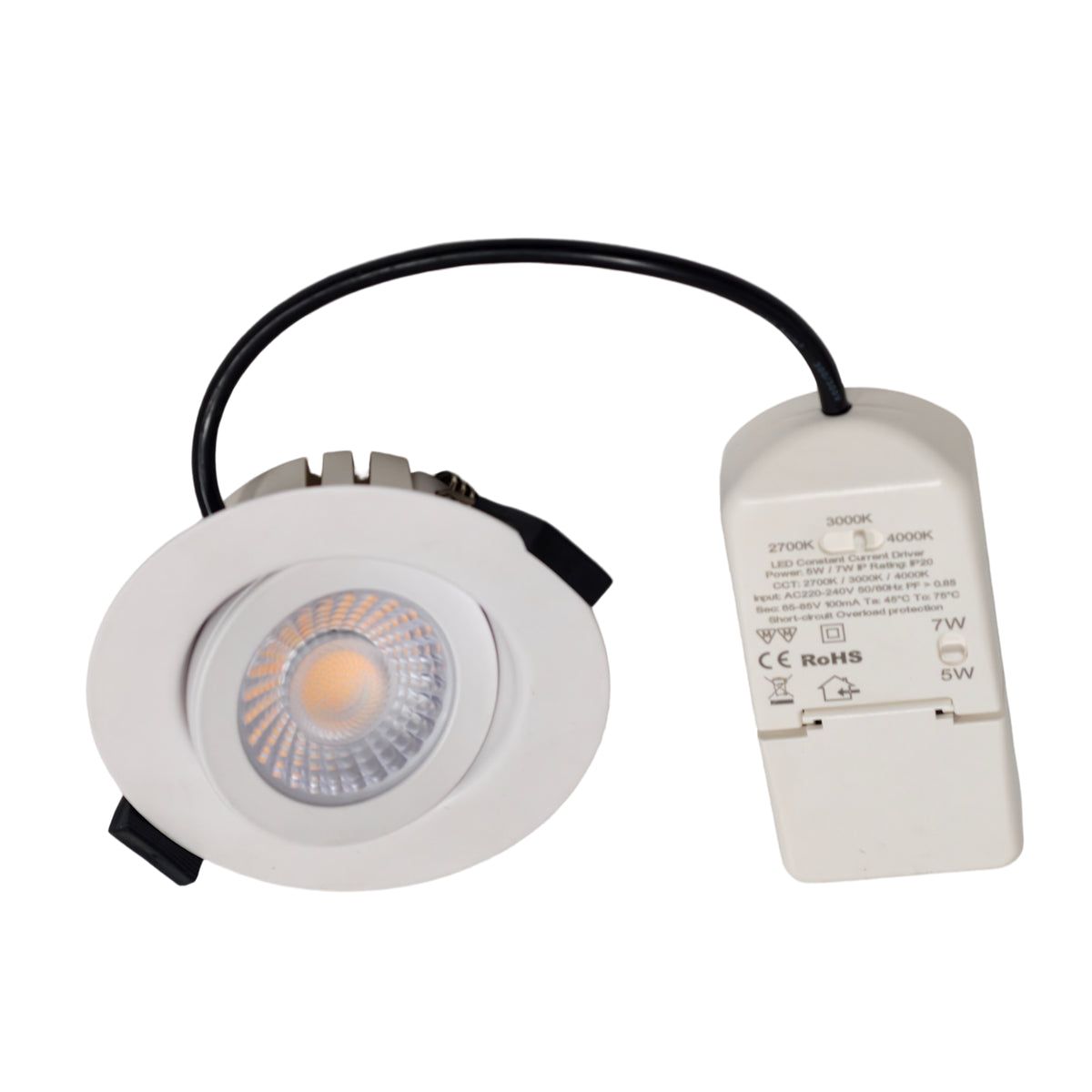

  • Orbit 360 SMD white LED downlight, angled view showing the tilting inner lens, mounting clips and external driver.
1 3

SINELED

Orbit 360° SMD Fire Rated Downlight Adjustable

Orbit 360° SMD Fire Rated Downlight Adjustable

Request a Quote

You are inquiring about:Orbit 360° SMD Fire Rated Downlight AdjustableModel: DL128-P

Your details are used to respond to this inquiry. Privacy policy

$0.00 USD
$0.00 USD
Sale Sold out

Model: DL128-P

Specifications

Wattage: 5W/7W
Lumens: 575lm-840lm
Voltage Range : AC220-240V
Efficacy: 115~120 Lm/W
Operating Temperature: -20℃ to +40℃
Beam Angle: ±180°
CRI: >80 /＞90 Optional
Fire Rated: Yes (30/60/90 min)
IP Rating : IP65 (front) | IP54 (back)
IK Rating: IK08
Power Factor: >0.90



Driver options: FG01 non-isolated 3CCT or dim-to-warm; GL01 isolated SELV 3CCT; GL02-R, DA01 and DA02 isolated SELV drivers.

• Insulation Coverable,passed 650° glow wire test and VDE0710 seriestest.
• Tool-free quick junction design.
• Compact design, suitable for even the smallest Installation boxes.
• High-efficiency heat dissipation design, can be directly covered withinsulating material.
• Adaptable to more than 90% of popular Trac-dimmers on themarket.

View full details
